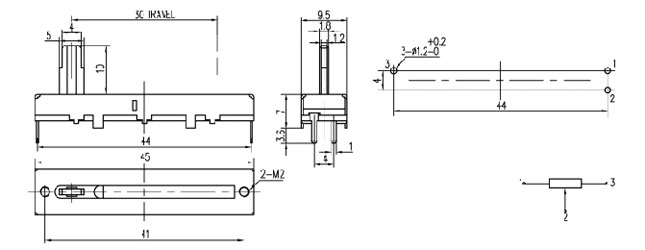

Outline Drawing
Specifications
Model | WH20 |
Tolerance of resistance | ±20% |
Operating force | 20-200gf.cm |
Resistance (law) taper | A B C D W |
Insulation resistance | 10Mohm Min AT 250V DC |
Withstand Voltage | 1Min.AT 250V AC |
Operating force | 10-120gf.cm |
Sliding life | 10,000Cycles |
